Carbon Steel

ISO 9001 Manufactured and Full ANSI Rated

Most typical cast eductors made by others in the industry meet only nominal pressure ratings. Jacoby Tarbox Eductors and Jet Pumps are designed and produced to meet rigorous ASME/ANSI specifications. JT eductors and jet pumps offer ratings about 30% higher than most competitors.

Carbon Steel Rating: 740 psig @ 100 F

  • Model HG 1/2" CS
    1/2" Model HG in Carbon Steel Motive Connection: 3/8" MNPTSuction Connection: 1/2" MNPTDischarge Connection: 1/2" MNPT   Performance Details: Motive: Steam / Air Motive Pressure: 20-150 PSIG Pressure...

    $195.00
    Choose Options
  • Model HL 1/2" CS
    1/2" Model HL in Carbon Steel Motive Connection: 3/8" MNPTSuction Connection: 1/2" MNPTDischarge Connection: 1/2" MNPT   Performance Details: Motive: Liquid Motive Pressure: 15-250 PSIG Pressure...

    $195.00
    Choose Options
  • Model ML 1/2" CS
    1/2" Model ML in Carbon Steel Motive Connection: 3/8" MNPTSuction Connection: 1/2" MNPTDischarge Connection: 1/2" MNPT   Performance Details: Motive: Liquid Motive Pressure: 15-250 PSIG Pressure...

    $195.00
    Choose Options
  • Model MLH 1/2" CS
    1/2" Model MLH in Carbon Steel Motive Connection: 3/8" MNPTSuction Connection: 1/2" MNPTDischarge Connection: 1/2" MNPT  Performance Details: Maximum Temperature Rise: 215°F Maximum Flow Heated: 5000...

    $160.00
    Choose Options
  • Model SG 1/2" CS
    1/2" Model SG in Carbon Steel Motive Connection: 3/8" MNPTSuction Connection: 1/2" MNPTDischarge Connection: 1/2" MNPT   Performance Details: Motive: Steam / Air Motive Pressure: 15-250 PSIG Pressure...

    $195.00
    Choose Options
  • Model SL 1/2" CS
    1/2" Model SL in Carbon Steel Motive Connection: 1/4" MNPTSuction Connection: 1/2" MNPTDischarge Connection: 1/2" MNPT   Performance Details: Motive: Liquid Motive Pressure: 15-250 PSIG Pressure Recovery:...

    $195.00
    Choose Options
  • Model HG 3/4" CS
    3/4" Model HG in Carbon Steel Motive: Liquid Motive Pressure: 15-250 PSIG Pressure Recovery: 40-50% Maximum Suction Lift: -27ft. Maximum Required NPSH: 3ft...

    $205.00
    Choose Options
  • Model HL 3/4" CS
    3/4" Model HL in Carbon Steel Motive: Liquid Motive Pressure: 15-250 PSIG Pressure Recovery: 40-50% Maximum Suction Lift: -27ft. Maximum Required NPSH: 3ft...

    $205.00
    Choose Options
  • Model ML 3/4" CS
    3/4" Model ML in Carbon Steel Motive: Liquid Motive Pressure: 15-250 PSIG Pressure Recovery: 30-35% Maximum Suction Lift: -27ft. Maximum Required NPSH: 3ft...

    $205.00
    Choose Options
  • Model MLH 3/4" CS
    3/4" Model MLH in Carbon Steel Maximum Temperature Rise: 215°F Maximum Flow Heated: 5000 GPM Steam Pressure Range: Vac-120 PSIG

    $205.00
    Choose Options

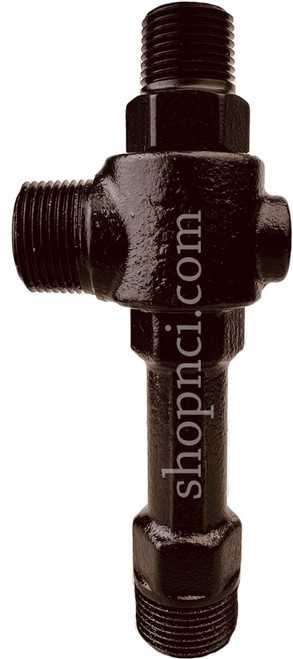

  • Model SG 3/4" CS
    3/4" Model SG in Carbon Steel Motive: Steam / Air Motive Pressure: 15-250 PSIG Pressure Recovery: 15-20% Maximum Suction Lift: -20ft. Maximum Required NPSH: 13ft...

    $205.00
    Choose Options
  • Model SL 3/4" CS
    3/4" Model SL in Carbon Steel Motive: Liquid Motive Pressure: 15-250 PSIG Pressure Recovery: 10-15% Maximum Suction Lift: -27ft. Maximum Required NPSH: 3ft...

    $205.00
    Choose Options
  • Model HG 1" CS
    1" Model HG in Carbon Steel Motive: Steam / Air Motive Pressure: 20-150 PSIG Pressure Recovery: 30-35% Maximum Suction Lift: -20ft. Maximum Required NPSH: 13ft...

    $260.00
    Choose Options
  • Model HL 1" CS
    1" Model HL in Carbon Steel Motive: Liquid Motive Pressure: 15-250 PSIG Pressure Recovery: 40-50% Maximum Suction Lift: -27ft. Maximum Required NPSH: 3ft...

    $260.00
    Choose Options
  • Model ML 1" CS
    1" Model ML in Carbon Steel Motive: Liquid Motive Pressure: 15-250 PSIG Pressure Recovery: 30-35% Maximum Suction Lift: -27ft. Maximum Required NPSH: 3ft...

    $260.00
    Choose Options
  • Model MLH Jet pump in carbon steel.  Size: 1"
    1" Model MLH in Carbon Steel Maximum Temperature Rise: 215°F Maximum Flow Heated: 5000 GPM Steam Pressure Range: Vac-120...

    $260.00
    Choose Options
  • Model SG 1" CS
    1" Model SG in Carbon Steel Motive: Steam / Air Motive Pressure: 15-250 PSIG Pressure Recovery: 15-20% Maximum Suction Lift: -20ft. Maximum Required NPSH: 13ft...

    $260.00
    Choose Options
  • Model SL 1" CS
    1" Model SL in Carbon Steel Motive: Liquid Motive Pressure: 15-250 PSIG Pressure Recovery: 10-15% Maximum Suction Lift: -27ft. Maximum Required NPSH: 3ft...

    $260.00
    Choose Options
  • Model ULJ 1" CS
    1" Model ULJ in Carbon Steel Maximum Temperature Rise: 200°F Maximum Flow Heated: 700 GPM Steam Pressure Range: 0-150 PSIG

    $260.00
    Choose Options
  • Model HG 1-1/4" CS
    1-1/4" Model HG in Carbon Steel Motive: Steam / Air Motive Pressure: 20-150 PSIG Pressure Recovery: 30-35% Maximum Suction Lift: -20ft. Maximum Required NPSH: 13ft...

    $305.00
    Choose Options
