Series PBLT2 & PBLTX

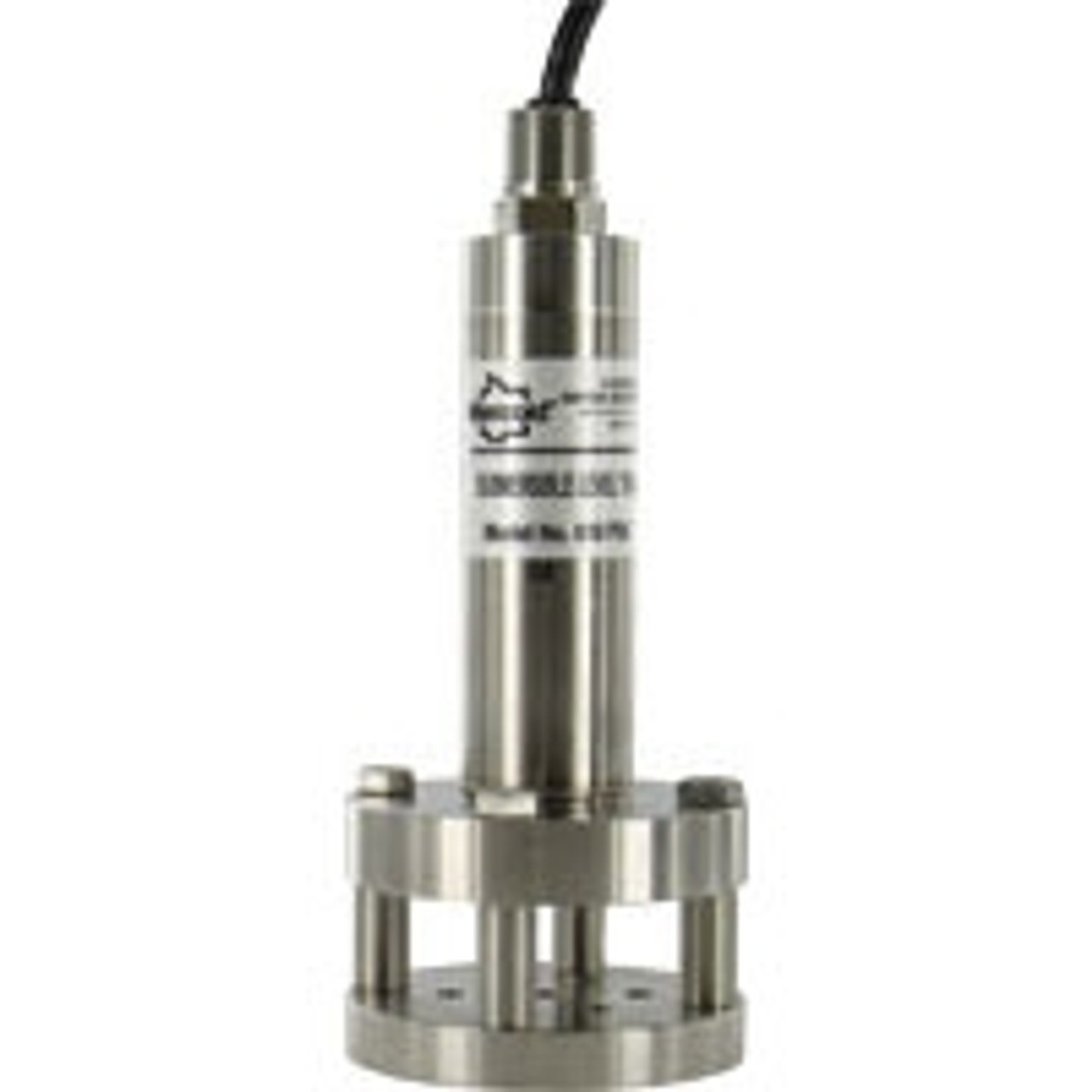

mercoid-logo-classic.jpgPBLT2 and PBLTX Submersible Level Transmitters are manufactured for years of trouble free service in the harshest applications. Both measure the height of liquid above the position in the tank referenced to atmospheric pressure. The transmitter consists of a piezoresistive sensing element, encased in a 316 SS housing. Perfect for wastewater and slurry applications with features to protect the unit from these demanding applications. Large diameter 316 SS diaphragm seal is non-clogging and damage resistant to floating solids.

The PBLT2 incorporates lightning and surge protection utilizing dual arrestor technology, grounded to case, eliminating both power supply surges and lightning ground strike transients (surge protection is not guaranteed and is not covered by warranty). The PBLTX is UL approved intrinsically safe for use in hazardous locations when used with proper barrier.

Units come equipped with a 270-pound tensile strength shielded and vented cable. Ventilation tube in the cable automatically compensates for changes in atmospheric pressure above the tank. The vent is protected with a maintenance free filter eliminating particulate or water droplets from entering the transducer.

  • Mercoid PBLT2-5-40
    Submersible level transmitter, range 5 psi (11.54 ft wc) [3.52 m wc], 40 ft (12.2 m) ETFE cable. Series PBLT2 & PBLTX Submersible Level Transmitter Perfect for Sludge and Slurries, Lightning Protected, Intrinsically...

    $639.00
  • Mercoid PBLT2-5-50
    Submersible level transmitter, range 5 psi (11.54 ft wc) [3.52 m wc], 50 ft (15.2 m) ETFE cable. Series PBLT2 & PBLTX Submersible Level Transmitter Perfect for Sludge and Slurries, Lightning Protected, Intrinsically...

    $681.00
  • Mercoid PBLT2-5-60
    Submersible level transmitter, range 5 psi (11.54 ft wc) [3.52 m wc], 60 ft (18.3 m) ETFE cable. Series PBLT2 & PBLTX Submersible Level Transmitter Perfect for Sludge and Slurries, Lightning Protected, Intrinsically...

    $723.00
  • Mercoid PBLT2-5-65
    Submersible level transmitter, range 5 psi (11.54 ft wc) [3.52 m wc], 65 ft (19.8 m) ETFE cable. Series PBLT2 & PBLTX Submersible Level Transmitter Perfect for Sludge and Slurries, Lightning Protected, Intrinsically...

    $744.00
  • Mercoid PBLT2-5-70
    Submersible level transmitter, range 5 psi (11.54 ft wc) [3.52 m wc], 70 ft (21.3 m) ETFE cable. Series PBLT2 & PBLTX Submersible Level Transmitter Perfect for Sludge and Slurries, Lightning Protected, Intrinsically...

    $765.00
  • Mercoid PBLT2-5-100
    Submersible level transmitter, range 5 psi (11.54 ft wc) [3.52 m wc], 100 ft (30.5 m) ETFE cable. Series PBLT2 & PBLTX Submersible Level Transmitter Perfect for Sludge and Slurries, Lightning Protected,...

    $891.00
  • Mercoid PBLT2-10-40
    Submersible level transmitter, range 10 psi (23.09 ft wc) [7.04 m wc], 40 ft (12.2 m) ETFE cable. Series PBLT2 & PBLTX Submersible Level Transmitter Perfect for Sludge and Slurries, Lightning Protected,...

    $639.00
  • Mercoid PBLT2-10-60
    Submersible level transmitter, range 10 psi (23.09 ft wc) [7.04 m wc], 60 ft (18.3 m) ETFE cable. Series PBLT2 & PBLTX Submersible Level Transmitter Perfect for Sludge and Slurries, Lightning Protected,...

    $723.00
  • Mercoid PBLT2-10-70
    Submersible level transmitter, range 10 psi (23.09 ft wc) [7.04 m wc], 70 ft (21.3 m) ETFE cable. Series PBLT2 & PBLTX Submersible Level Transmitter Perfect for Sludge and Slurries, Lightning Protected,...

    $765.00
  • Mercoid PBLT2-10-80
    Submersible level transmitter, range 10 psi (23.09 ft wc) [7.04 m wc], 80 ft (24.4 m) ETFE cable. Series PBLT2 & PBLTX Submersible Level Transmitter Perfect for Sludge and Slurries, Lightning Protected,...

    $807.00
  • Mercoid PBLT2-10-100
    Submersible level transmitter, range 10 psi (23.09 ft wc) [7.04 m wc], 100 ft (30.5 m) ETFE cable. Series PBLT2 & PBLTX Submersible Level Transmitter Perfect for Sludge and Slurries, Lightning Protected,...

    $891.00
  • Mercoid PBLT2-15-60
    Submersible level transmitter, range 15 psi (34.63 ft wc) [10.56 m wc], 60 ft (18.3 m) ETFE cable. Series PBLT2 & PBLTX Submersible Level Transmitter Perfect for Sludge and Slurries, Lightning Protected,...

    $723.00
  • Mercoid PBLT2-15-80
    Submersible level transmitter, range 15 psi (34.63 ft wc) [10.56 m wc], 80 ft (24.4 m) ETFE cable. Series PBLT2 & PBLTX Submersible Level Transmitter Perfect for Sludge and Slurries, Lightning Protected,...

    $807.00
  • Mercoid PBLT2-15-100
    Submersible level transmitter, range 15 psi (34.63 ft wc) [10.56 m wc], 100 ft (30.5 m) ETFE cable. Series PBLT2 & PBLTX Submersible Level Transmitter Perfect for Sludge and Slurries, Lightning Protected,...

    $891.00
  • Mercoid PBLT2-15-150
    Submersible level transmitter, range 15 psi (34.63 ft wc) [10.56 m wc], 150 ft (45.7 m) ETFE cable. Series PBLT2 & PBLTX Submersible Level Transmitter Perfect for Sludge and Slurries, Lightning Protected,...

    $1,101.00
  • Mercoid PBLT2-20-60
    Submersible level transmitter, range 20 psi (46.18 ft wc) [14.08 m wc], 60 ft (18.3 m) ETFE cable. Series PBLT2 & PBLTX Submersible Level Transmitter Perfect for Sludge and Slurries, Lightning Protected,...

    $723.00
  • Mercoid PBLT2-20-100
    Submersible level transmitter, range 20 psi (46.18 ft wc) [14.08 m wc], 100 ft (30.5 m) ETFE cable. Series PBLT2 & PBLTX Submersible Level Transmitter Perfect for Sludge and Slurries, Lightning Protected,...

    $891.00
  • Mercoid PBLT2-25-100
    Submersible level transmitter, range 25 psi (57.70 ft wc) [17.58 m wc], 100 ft (30.5 m) ETFE cable. Series PBLT2 & PBLTX Submersible Level Transmitter Perfect for Sludge and Slurries, Lightning Protected,...

    $891.00
  • Mercoid PBLT2-100-40
    Submersible level transmitter, range 100 psi (230.67 ft wc) [70.32 m wc], 40 ft (12.2 m) ETFE cable. Series PBLT2 & PBLTX Submersible Level Transmitter Perfect for Sludge and Slurries, Lightning Protected,...

    $639.00
